Our range of PCB trolley’s and handling systems, achieve compact handling with easy of manoeuvrability.

• 920-100 Capacity: 100 boards at 16mm pitch Max board size 1000mmx450mm deep.
  Dimensions 1225mm x 560mm x 1490mm high.

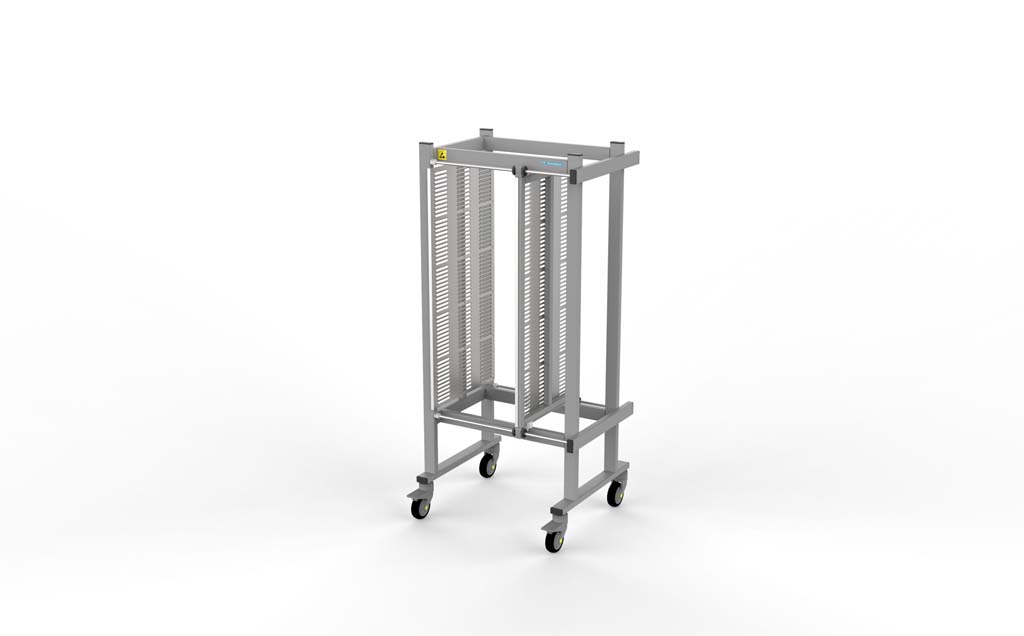

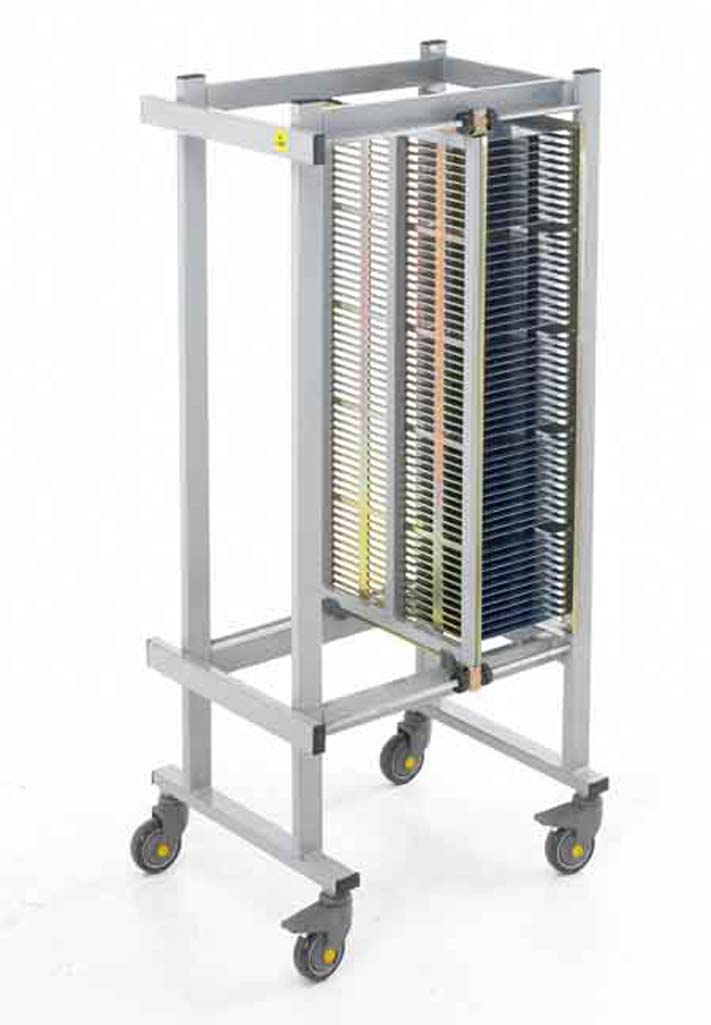

• 920-50 Capacity: 50 boards at 16mm pitch Max Board Size 500mm wide x 450mm deep.
  Dimensions 630mm x 560mm x 1490mm high.

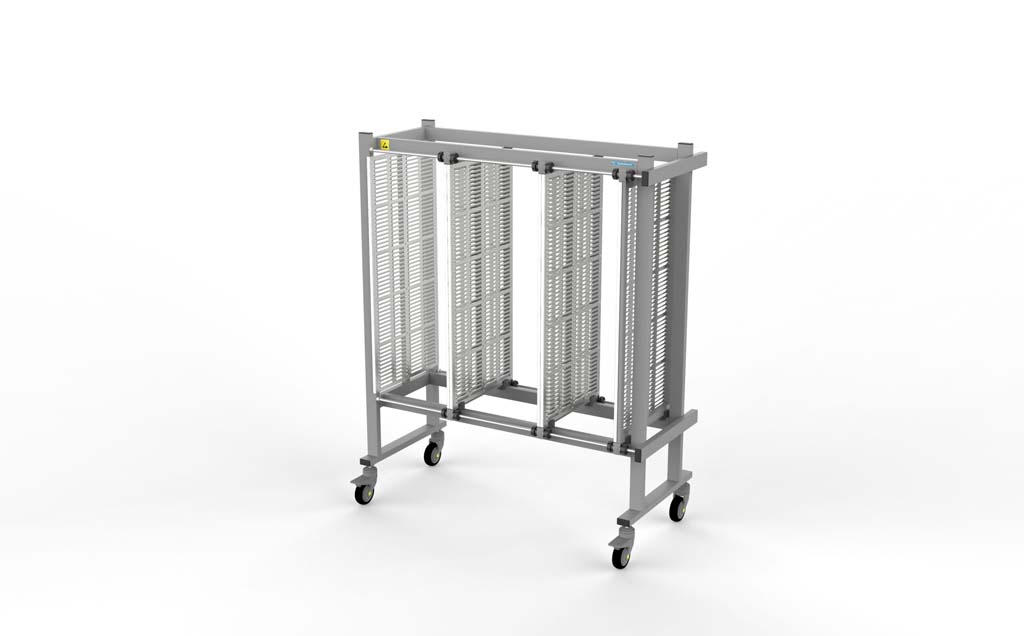

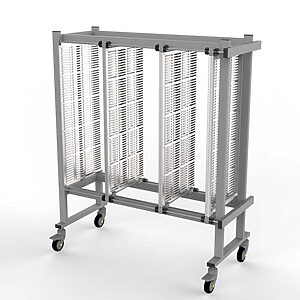

• 920-150 Capacity: 150 boards at 16mm pitch. Max board size 1000mm x 450mm deep.
  Dimensions: 1225mm x 560mm x 1490mm high.
•  920-17A – Each additional double sided louvre panel increases capacity of any 920 unit by 50 boards.

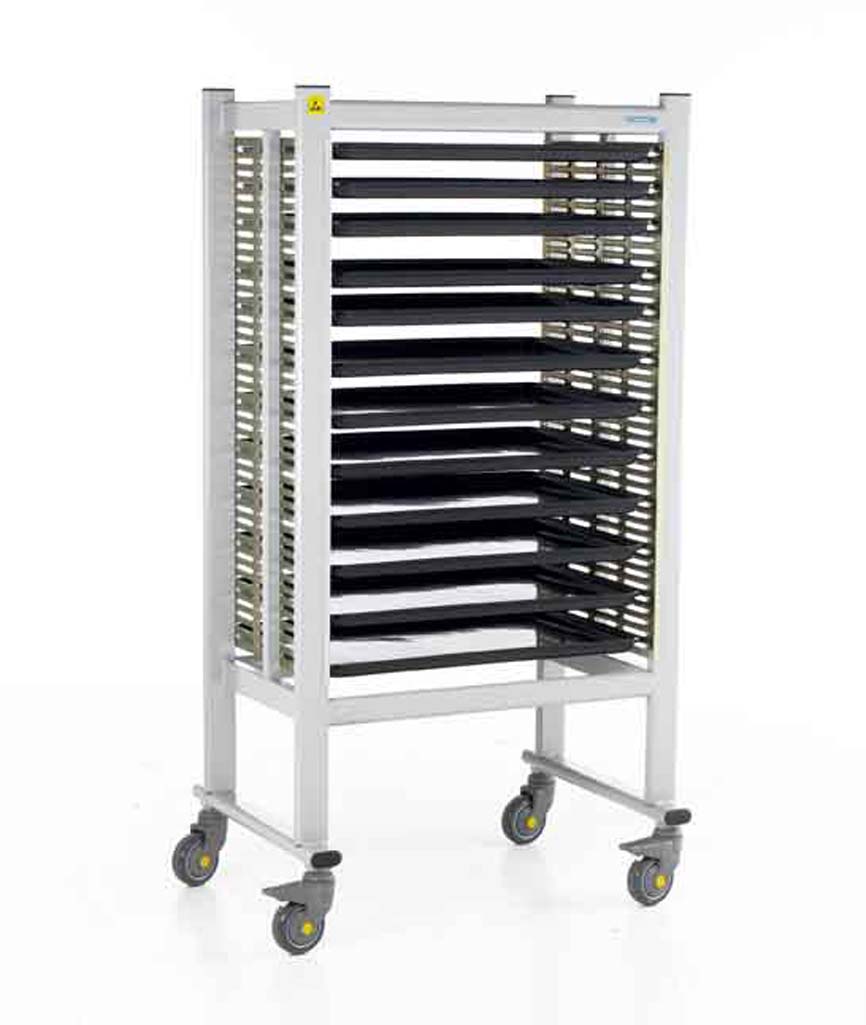

• 783-200 – PCB Tray Trolley -Safe handling of boards that cannot be held conventionally -ie populated to the edge, odd shaped, or flexible – Static safe handling trays with dissipative foam matting- 30 trays at a 45mm pitch for excellent space utilisation. -Tray retaining mechanism for transportation safety.

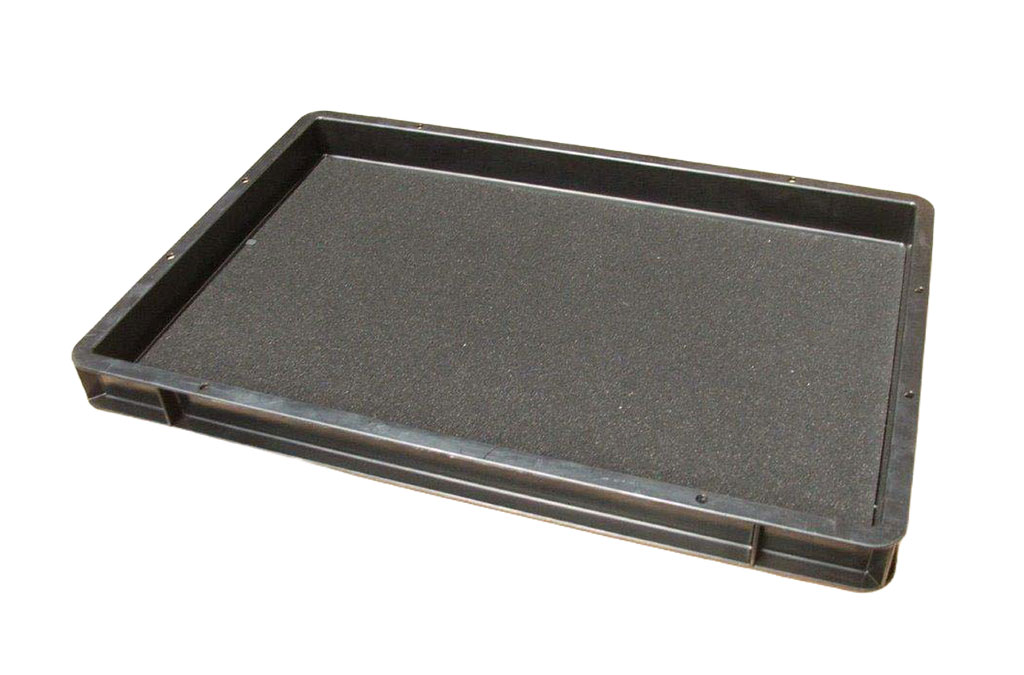

• 783-221 – Ridged conductive tray with conductive foam. Tray size: 600mm x 400mm.
